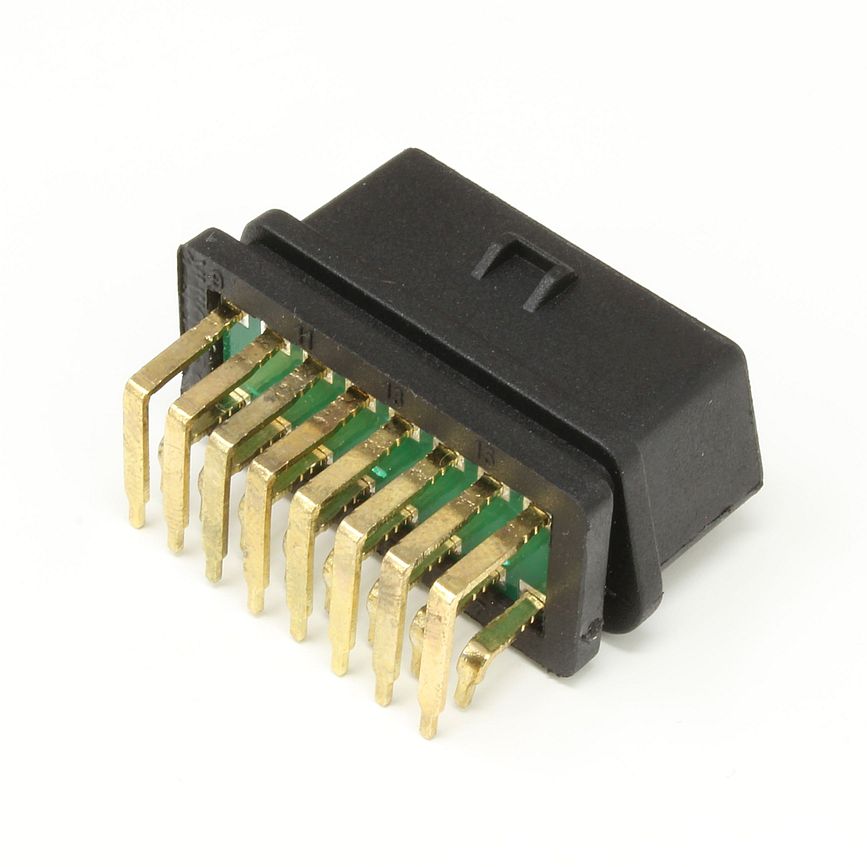

OBD2 Female right-angle PTH connector

SKU:
CCBDF205
$49.50

5 Pack of connectors

Notify Me

Our custom right-angle OBD2 connectors, as used in most of our products, are now available for you to use in your own projects. Solid build quality, convenient right-angle connection for easier PCB integration, and designed to last.

Each pack contains 5 connectors.

Features bullet points:
OBD2 16pin female connector
Right-angle mounting, plated thru-hole pins
Rated voltage: 12V max
Current: 13A max
Shell material: PA66 + glass fiber (15%)
Shell color: Black
Contact material: copper with gold plating
Contact resistance: 3 ohm max
Insulation resistance: 100M ohm min
Operating temperature range: −25℃ ~ +85℃
RoHS compliant

Download PDF drawing HERE

Download STEP file HERE
