M2 (Under-the-Hood)

SKU:
2SH17
$99.00

Ships in 2-3 days

Notify Me

M2 Under-the-Hood (UTH) is our versatile, open source automotive interface designed to be hardwired into your vehicle. M2 works with almost any modern vehicle and features an SAM3X ARM Cortex-M3 processor at its core and a Bee socket to easily add WiFi, BLE, GSM, 3G, LTE or GPS functionality (for compatible add-ons, click here.) Have a different processor in mind? Your processor can easily be swapped out with our Breakout Board. Please note that M2-UTH is exactly the same as M2-UTD (Under-the-Dash) except the UTH version lacks the OBD2 connector. For detailed documentation on M2, click here.

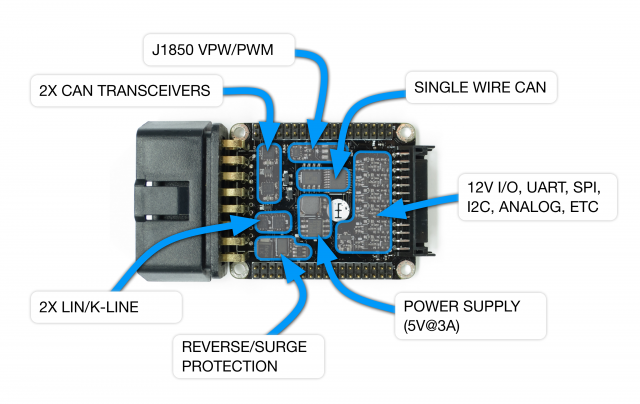

Features:

- 2 channels of CAN

- 2 channels of LIN/K-LINE

- 1-J1850 VPW/PWM interface

- 1 single-wire CAN (GMLAN) interface

- High-speed microSD card slot

- Native USB, can act as device or host (microUSB port)

- 5 built-in LEDs, 1 RGB LED

- 4 tact switches (2x User-configurable, 1x RESET, 1x ERASE)

- 32Kbits non-volatile EEPROM

- Circuits to protect from overcurrent, reverse voltage, and overvoltage

- 6 general purpose driver circuits, source or sink up to 1A at 12 volts

- 1-26-pin general purpose connector (more information available here)



What’s in the Box:

- 1 M2-UTH (includes M2 UTH Interface Board and Processor Board)

- 1-24-pin connector and wires

- 1 Macchina sticker
